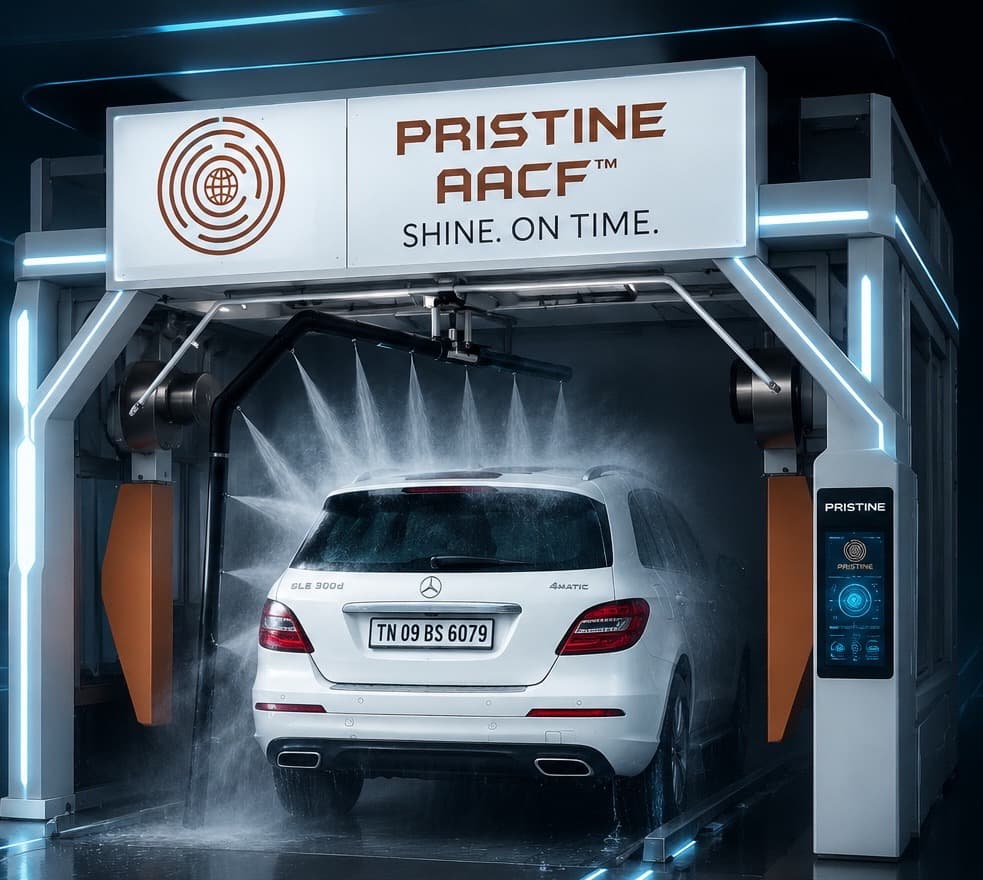

India'sMostAdvancedAutomaticCarWashMachine
The AACF-V2 series — fully touchless, AI + IoT enabled, engineered and built in India. Own the machine from ₹10,00,000.
It is one of the best automatic car wash machines in India — a fully India-made system that matches imported and Chinese automatic car wash machines on automation, while being built and serviced right here in Coimbatore.
Shine. On Time.

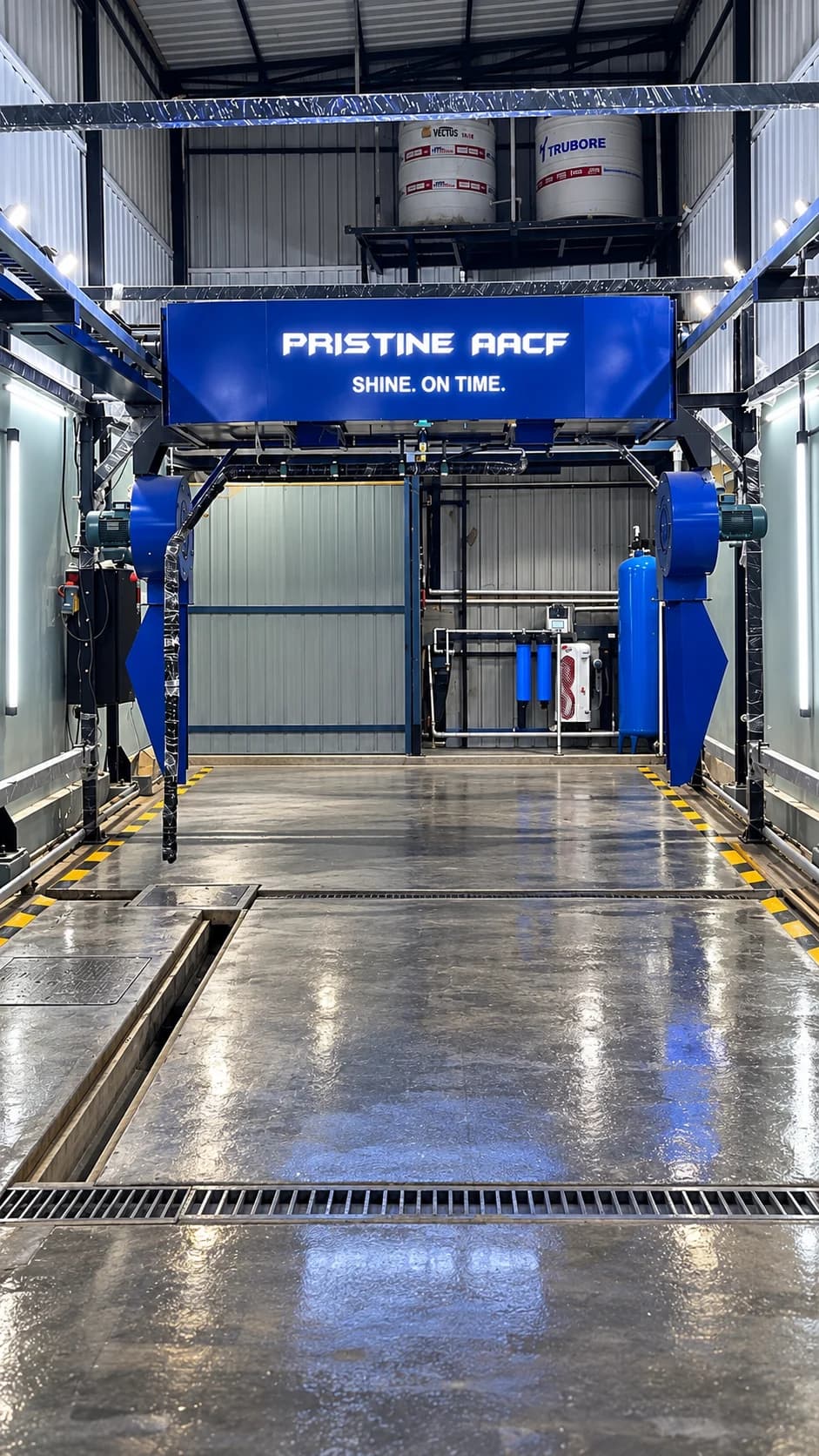

Proven live at our Gandhipuram facility — 6-minute washes, 4.8 on Google
Trusted by buyers on IndiaMART
EngineeredToOutperform
3–6 min
Full wash & dry cycle
130 bar
Operating wash pressure
20–60 L
Water per wash, typically 30–40 L (vs ~150 L measured on conventional automatics)
0.2–0.6 kWh
Electricity per wash (vs ~1.5 units measured on conventional automatics)
7.0 × 4.35 × 3.3 m
Compact installation footprint
up to 5.5 × 2.4 × 2.3 m
Maximum washable vehicle size
3D scanning
Vehicle detection by length × width × height
Human detection
Automatic emergency pause for safety
PickYourAACF-V2
From ₹10–13 Lakh. Two-dryer and four-dryer builds, with intelligent INT models adding AI, IoT and an integrated management platform.
| Specification | AACF-V2-2D5 | AACF-V2-2D75 | AACF-V2-4D5 | AACF-V2-4D75 | AACF-V2-4D5-INT | AACF-V2-4D75-INT |
|---|---|---|---|---|---|---|
| Dryers | 2 | 2 | 4 | 4 | 4 | 4 |
| Dryer power | 7.5 kW · 13 kPa · 7000 CFM | 11 kW · 17 kPa · 9800 CFM | 15 kW · 26 kPa · 14000 CFM | 22 kW · 34 kPa · 19600 CFM | 15 kW | 22 kW |
| Wash speed | 3–6 min | 3–6 min | 3–6 min | 3–6 min | 3–6 min | 3–6 min |
| Standard input (AC440V 3-phase) | 11 kW | 15 kW | 19 kW | 26 kW | 19 kW | 26 kW |
| Electric consumption | 0.2–0.4 kWh/wash | 0.2–0.4 kWh/wash | 0.3–0.5 kWh/wash | 0.5–0.6 kWh/wash | 0.3–0.5 kWh/wash | 0.5–0.6 kWh/wash |
| Control | PLC + HMI | PLC + HMI | PLC + HMI | PLC + HMI | PLC + HMI + AI + IoT | PLC + HMI + AI + IoT |
| AI dirt-sensed washing | — | — | — | — | ||
| IoT consumption reports & maintenance reminders | — | — | — | — | ||
| Integrated management app (accounting & CRM) | — | — | — | — | ||
| Production reports | — | — | — | — | ||
| List price | ₹10,00,000 | ₹11,00,000 | ₹11,00,000 | ₹12,00,000 | ₹12,00,000 | ₹13,00,000 |
Standard across all variants: 130 bar wash pressure, 7.5 kW water pump, VFD drive, proximity + optical + ultrasonic sensors, automatic under-chassis wash, vehicle guidance system, light / medium / hard wash modes plus manual mode, carbon-steel body with anti-rust powder coating, control room 1.9 × 1.5 × 1.2 m, track length 6.9 m, and dual chemical provision (pre-soak + shampoo, or shampoo + wax).
HowAACF-V2Compares
| Parameter | PRISTINE AACF-V2 | ATS ELGI Smartstream | Schumak Touchless V2 | Advantage |
|---|---|---|---|---|
| Required space | 7.0 × 4.35 × 3.3 m | 9 × 4.7 × 3.6 m | 6.7 × 4.25 × 3.7 m | Compact footprint |
| Max washable vehicle | 5.5 × 2.4 × 2.3 m | 5.2 × 2 × 2.3 m | 4.75 × 1.9 × 1.9 m | Widest washability |
| Operating pressure | 130 bar | 16 bar | 100 bar | Fastest dirt removal |
| Water consumption | 20–60 L (typically 30–40 L) | ~150 L (measured) | ~150 L (measured) | Least water |
| Power per wash | 0.2–0.6 units | ~1.5 units (measured) | ~1.5 units (measured) | Least power |
| Connection load | 11–26 kW (by variant) | 12 kW | 12 kW | — |
| Running load (typical draw) | 10 kW (2-dryer) / 17 kW (4-dryer) | NA | NA | — |
| Cycle time | 3–6 min incl. drying | 4 min | 3 min without drying & wheel arch | Fastest full cycle |
| Vehicle scanning | L × W × H | Length only | Length only | Accurate wash |
| Under-chassis wash | Standard | Additional | Additional | No extra cost |
| Chemical provision | Dual | Single | Single | — |
| Dryer | Dynamic | Static | NA | — |
| Automation | PLC + HMI | PLC | PLC | — |
| Electronics | VFD | Contactor | Contactor | Reliable, surge-safe |
| Vehicle & human detection | Yes | NA | NA | Safety |
| Auto start & stop | Yes | No | No | — |
| AI enabled | Yes | NA | NA | — |
| IoT enabled | Yes (live tracking + maintenance reminders) | NA | NA | — |
| Compressor | Not required | Required | Required | — |
| Under-chassis pit | Not required | Required | Required | Lower civil cost |
| Operators needed | 1 | 3 | 3 | Lower labour cost |
Competitor figures marked “measured” are water and electricity readings taken by PRISTINE AACF on machines in service; all other competitor specifications are from publicly available product literature. Verify current specifications with each manufacturer. Only PRISTINE AACF pricing is published here.
AnAssetThatPaysBack
What we assume
30
washes / day
₹399
average ticket
₹20
direct cost / wash
₹15,000
labour / month
≈ ₹3,26,100
net profit / month
≈ 4 months
to pay back the machine
Runs with 1 operator instead of 3 — a direct, recurring labour saving.
Illustrative only. Actual revenue, running cost and payback depend on your location, pricing, volume and utilisation.
BuiltForIndianOperators
Made in India
Built in Coimbatore for Indian vehicles, water and power conditions — with local parts and service.
Lower civil cost
No pit and no compressor required, cutting site preparation and civil work dramatically.
1 operator
Full automation means a single operator runs the bay — a third of conventional labour.
Ongoing support
AMC plus a cloud platform for recurring maintenance, monitoring and software support.
Modular & scalable
Start with a two-dryer build and step up to AI + IoT INT models as your volume grows.
Prefer a turnkey business instead of just the machine? Explore the PRISTINE franchise →
Questions,Answered
How much space do I need to install the AACF-V2?
The machine fits within a 7.0 × 4.35 × 3.3 m footprint, with a 6.9 m track length and a compact 1.9 × 1.5 × 1.2 m control room. It is designed to be one of the most space-efficient touchless systems available in India.
How long does installation take?
Installation timelines depend on your site condition and civil readiness. Because the AACF-V2 needs no pit and no compressor, site work is far lighter than conventional systems — our team will confirm the exact schedule at your site survey.
What is included with the machine?
The AACF-V2 ships with 130 bar wash system, 7.5 kW water pump, VFD drive, full sensor suite (proximity, optical, ultrasonic), automatic under-chassis wash, vehicle guidance, PLC + HMI controls, dual chemical provision and the carbon-steel powder-coated body. Water use is kept to just 20–60 L per wash.
What is the difference between standard and INT variants?
Standard variants (2D5, 2D75, 4D5, 4D75) run on PLC + HMI control. INT variants (4D5-INT, 4D75-INT) add AI dirt-sensed washing, IoT consumption reports and maintenance reminders, production reports, and an integrated management app with accounting and CRM.
What is the best automatic car wash machine in India?
The AACF-V2 is among the best automatic car wash machines available in India — a fully India-made, touchless system that washes and dries a car in 3–6 minutes at 130 bar, runs with a single operator, and needs no pit and no compressor. It is built in Coimbatore and sold in six variants from ₹10–13 lakh, including AI- and IoT-enabled INT models. Book a live demo to see it run.
Is there an Indian alternative to Chinese automatic car wash machines?
Yes. The AACF-V2 is an India-made automatic car wash machine that matches the automation of popular imported and Chinese machines — touchless high-pressure washing, automatic under-chassis wash, vehicle scanning and full PLC/HMI control — while being manufactured, supported and serviced locally in Coimbatore. That means faster installation, locally available spares and support, and no import lead times.
How do I order or see it running?
Call or WhatsApp us for a quote, or book a demo at our Coimbatore facility where the machine runs live every day. You can also compare owning the machine outright with our franchise route.
Want the machine without the franchise, or the other way round? See our franchise model →
Book A Demo In Coimbatore
See the AACF-V2 wash a car live at our Gandhipuram facility, then take home a quote. From ₹10–13 Lakh, made in India.
